Capricorn Genuine PTFE XS Tube 1.75 Ender 3/5 CR10 Bowden 3D Printers Teflon 1m
(13)
PLEASE NOTE: Product is sold single 1 Metre lengths - Ordering 2 metres will result is delivery of 2 separate packages with 1 metre enclosed etc.

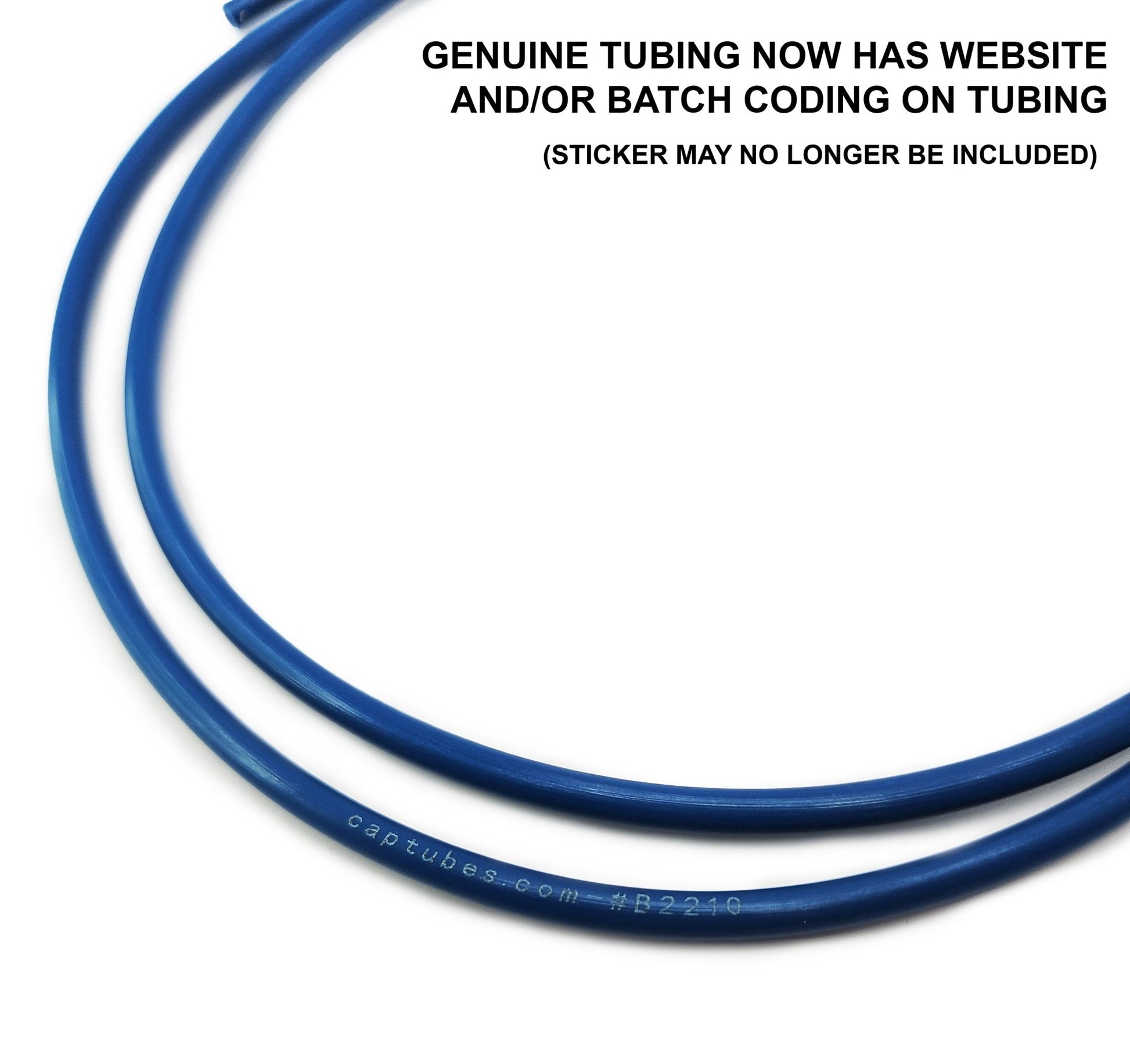

New batches of Capricorn tubing now uses printing on the tube to identify genuine products. Batch codes or Captubes website should be printed on the tube and no longer has sticker provided in these cases.
Specifications;
TUBING:
- Filament Size: 1.75mm
- Sold As / Size: 100cm (1 metre) each

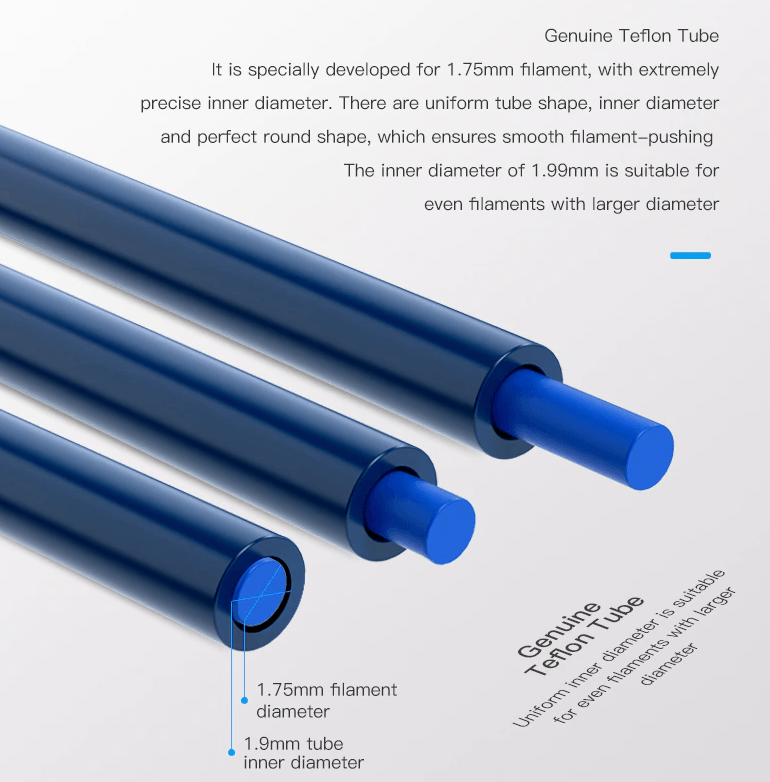

- Tube I.D: 1.99mm
- Up to 260°c Temperature resistance (may be able to print higher, but may cause off-gassing, see link for more details: https://www.captubes.com/safety.html)
- Tubing Brand: Capricorn
- Warranty: 2 Years on tubing only

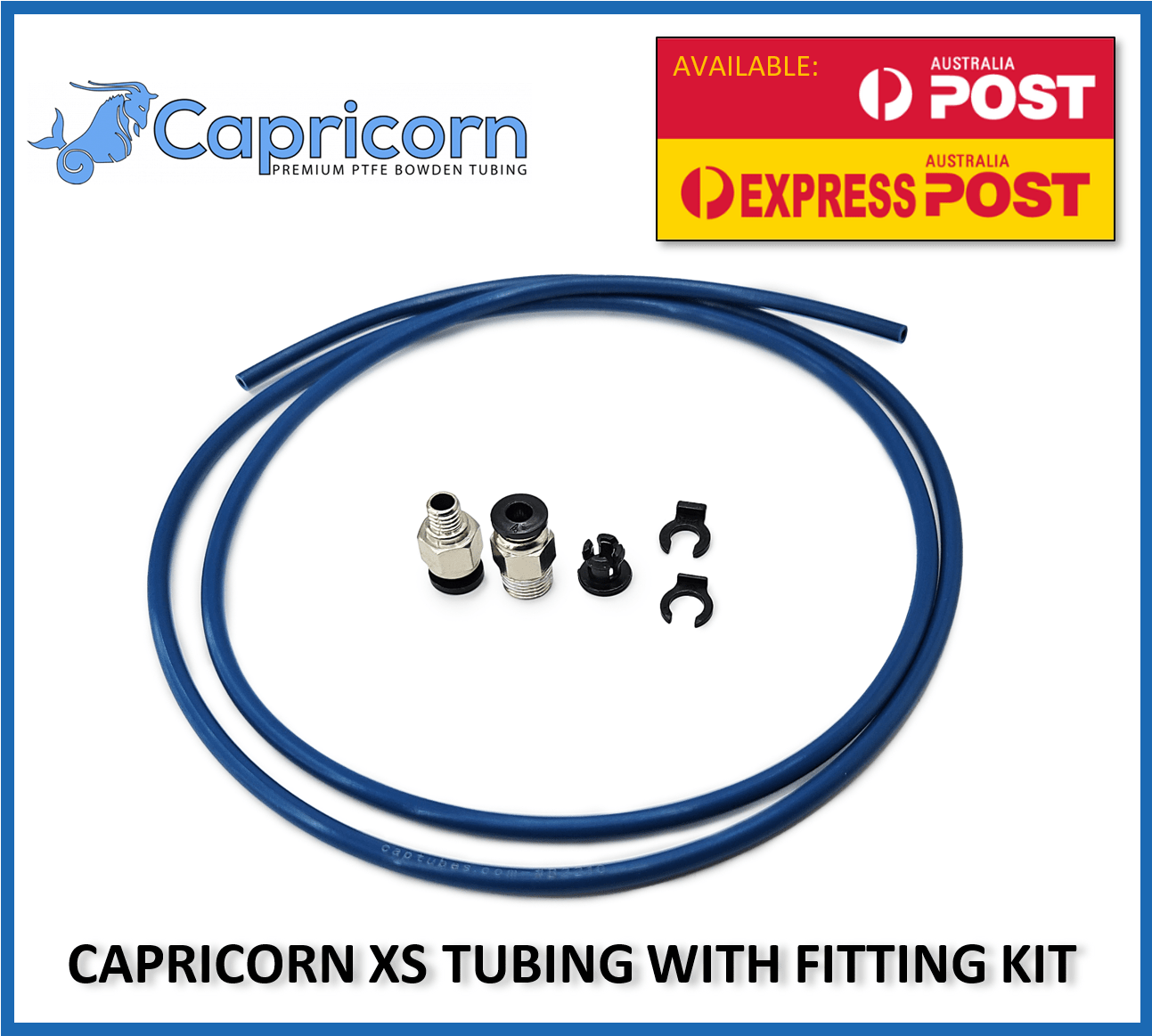

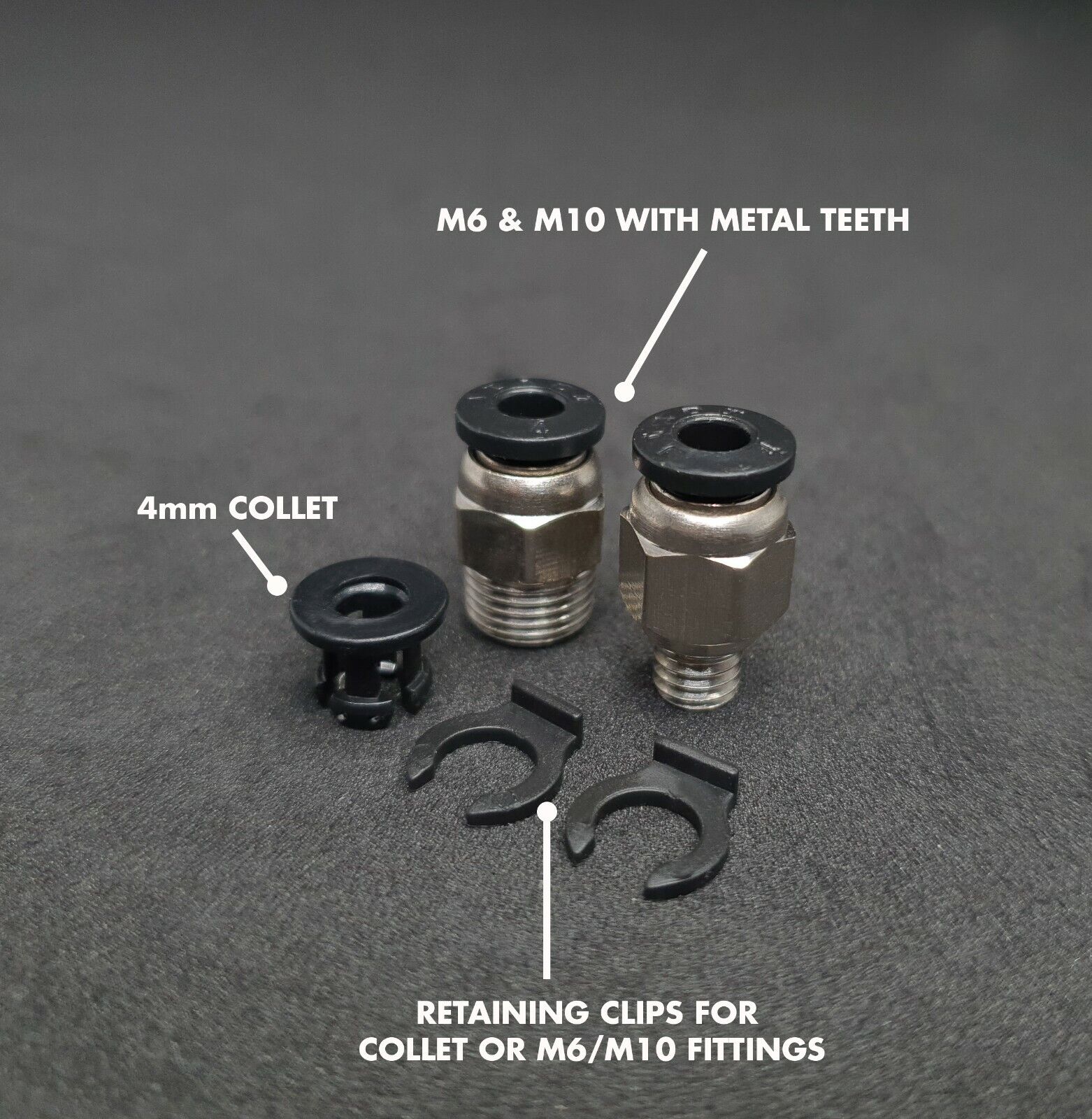

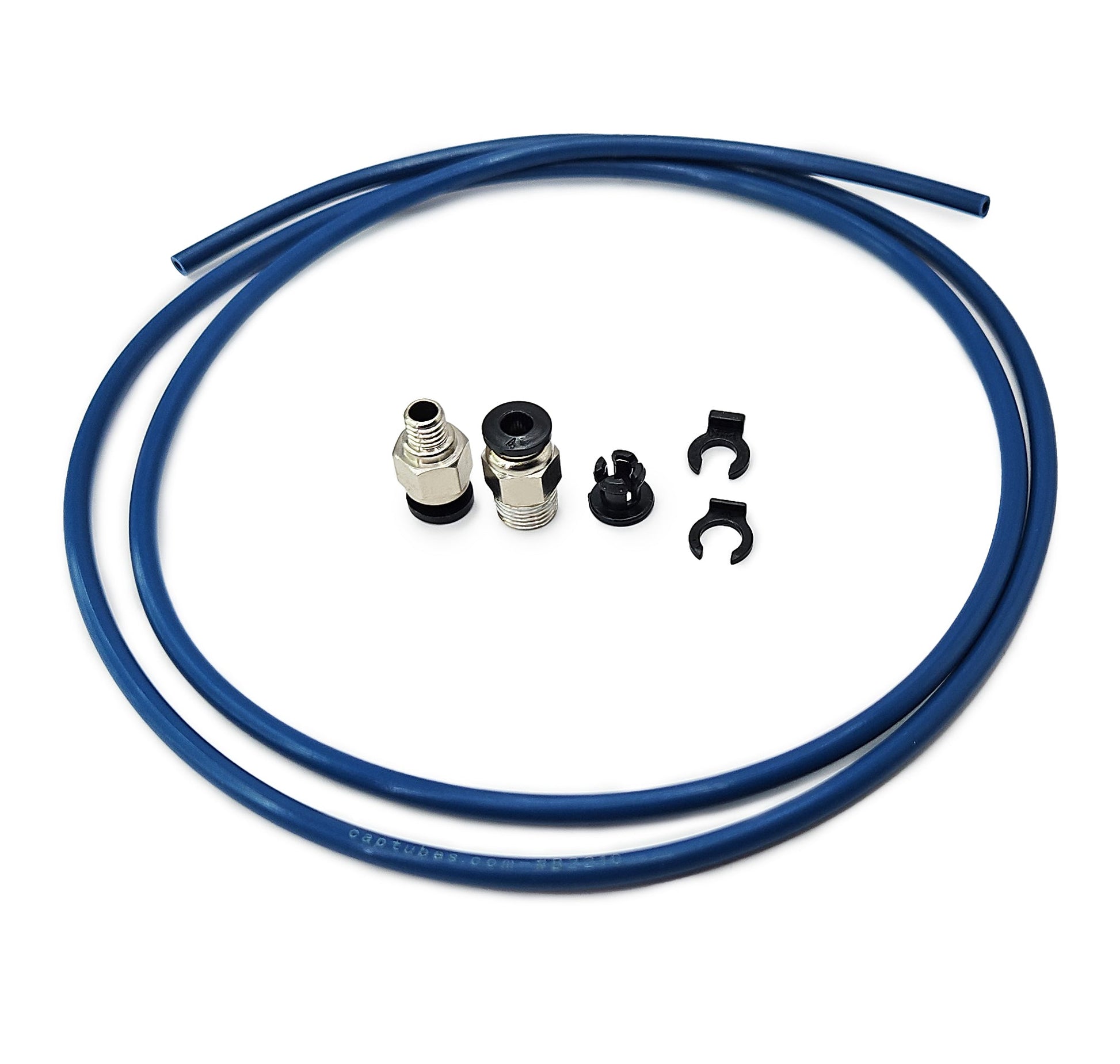

FITTINGS:
- PC4-01 PTFE Pneumatic Connector with metal teeth x 1
- PC4-M6 PTFE Pneumatic with metal teeth Connector x 1
- PTFE Collet x 1
- PTFE Collet / Pneumatic Clips x 2

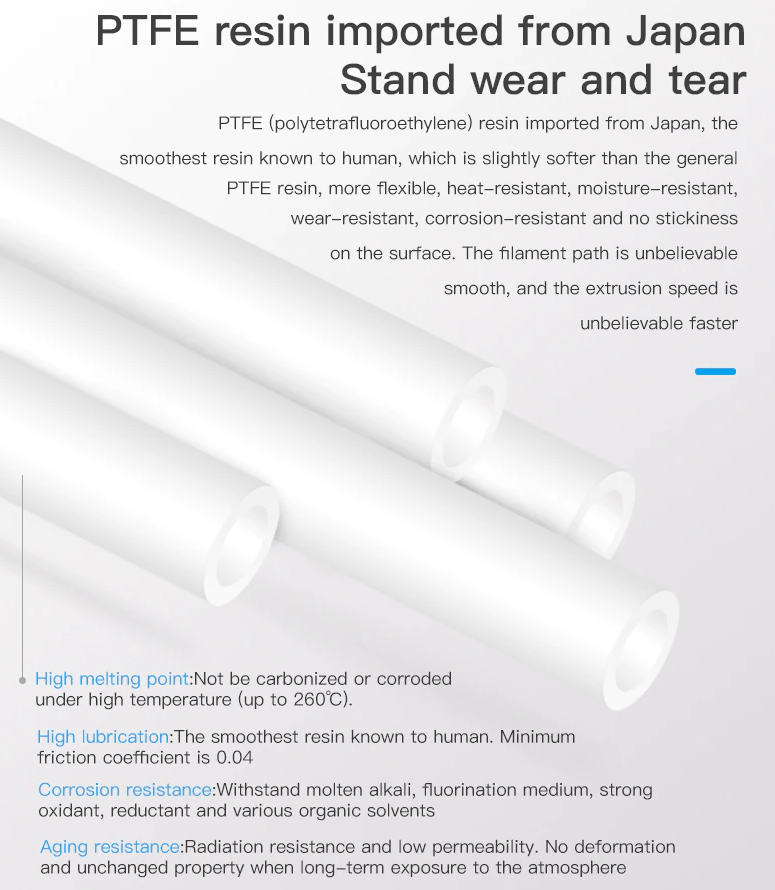

An awesome upgrade for your existing PTFE bowden tubing. Genuine Capricorn tubing introduces less friction, less shrinkage, slipping, abrasion, accurate printing and high temperature resistance. Paired with our aftermarket fitting kit that has metal teeth pneumatic connectors, it also makes it one of the easiest upgrades.
** AFTER STAINLESS STEEL FITTINGS? - We now sell heavy duty 304 stainless pneumatic fittings in our store as a separate upgrade **
Our Capricorn products are genuine and it is advised to double check when purchasing similar products elsewhere. If the price is to good to be true, or the descriptions brand is different etc, it may be a Capricorn copy.
PLEASE NOTE: Product is sold single 1 Metre lengths - Ordering 2 metres will result is delivery of 2 separate packages with 1 metre enclosed etc.
If you require a different combination of PTFE fittings for your application, please let us know when ordering also, we are always happy to assist.
Please be cautious when installing PC4-M6 Fittings, as these are designed with a thin wall at the threads, care must be taken not to overtighten, excessive torque can cause damage. In some applications the thread may bottom out sooner then expected due to printers extruders and other applications varying wildly.
